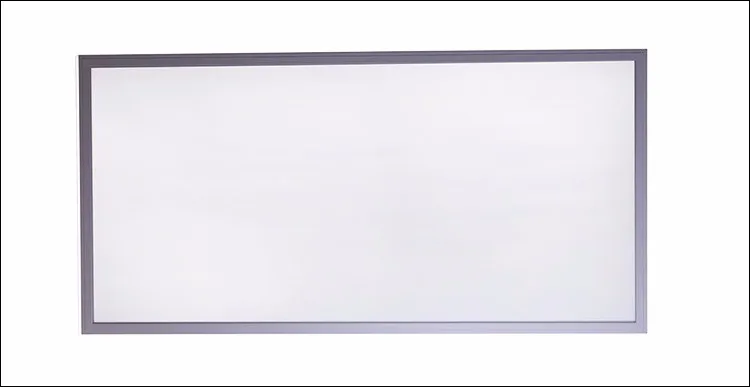

UL DLC Listed AC100-277V 72w 2x4 Panel Light Led building lighting

FOB Reference Price:Get Latest Price
$32.90 - $45.90 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
7200
CRI (Ra>):
80
Working Temperature(℃):
-25 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
CE, EMC, LVD, RoHS
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ZJESL
Model Number:
ES-X24-72W
Light Source:
LED
Product name:
72W 2x4 Panel Light Led building lighting
Type:
led panel light
Shape:
Square Shape
Item:
2X4 Led Panel Light
Color:
Warm white/Cool white/Natural wihit
Size:
603*1203*9mm
Keyword:
Led building lighting
Installation:
Suspended/Embedded/Surface mounted
Application:
Living room , Bedroom ,Kitchen etc,Meeting room ,office etc
LED Chip:
SMD2835
Item Type:
Panel Lights
Warranty(Years):
3
Lamp Power(W):
72
LED Light Source:
SMD2835
Lamp Luminous Efficiency(lm/w):
100
Color Temperature(CCT):
2700-6500K
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner packing: White color box each pcs, ESL Color Box each pcs,
out packing: Standard exporting packing, Or to be negotiated
Port
Shanghai/Ningbo
Lead Time :
Shipped in 20 days after payment


Hi my friend, I'm Summer, please see below products introduction.
We pursue high value, no matter in products or in service.
If you need more information on products, please contact through above my contact information
or email at the bottom page.
Warmly welcome to visit our factory,looking forward to meeting you.





Company informations

We are an independent full-service exporter focused on providing the best service to export the lighting from China to the world. We have been in lighting business over 9 years.


More recently we have increased our LED Lighting manufacturing line to LED Spot lights, LED linear light , LED pendant lights, LED Tubes, LED Panels, as well as the LED Outdoor lights.


Our factory covers an area of 20000 square meters,Besides we had our professional optical lab, and our engineers had mater degree, and had full knowledge in lighting area,Our mission is to support the independent professional with good quality products in lighting area and advanced solution to give you an edge over your competitors in today's competitive world.


Contact us today to learn more!



Application





specification

72W 2x4 Panel Light Led building lighting

Item No.

ES-603*1203-72W

LED

SMD2835

Power

72W

Lumen(LM)

7200Lm

RA

>80

Dimmable

No

Size

603*1203*9MM

Weight

7kg

Export Carton size

68*128*5cm

Power Factor

>0.95

MaterialAlum.

CCT

Warm   White:2700-3500k

CCT

Natural White:4000-4500k

CCT

Cool    White:6000-6500K

MOQ

10pcs

lifespan50,000 hours

Voltage Frequency

AC220-240V

Warranty

years







The material PC is very harder ,and the light transmittance is more worse. But our material PP the flexibility is more better,won’t bend,and the light transmittance is better.

We also can make UGR<19



No flicking driver can protect the eyes,and our driver have pass EMC,LVD,TUV,SAA,UL,LM79 certification.



Features





Our led chip the largest lumen can reach 130lm/w, the best CRI we can more than 90(CRI>90),normal we use CRI>80.



Our lamp bead the cooling effect is better,higher brightness,the light efficiency can reach above 97%





 LED Panel light save energy,take 36w 600*600 LED panel light for example,it lighting 8 hours every day.



1.The lumen of 1pc LED panel light amount to 3pcs general 14w T5 fluorescent.

   1 LED panel light about $20/PC,1 general tube light about $10/PC,so can save US$10 per used cycle.



2.LED panel light life time is 50000 Hours,T5 fluorescent is 3000 Hours,it means 1pc LED panel light amount to    16pcs general 14w T5 fluorescent,it will save US$150,beside,labor cost is free.



3.1pc LED panel light will expend 0.288 unit electricity,105.12 unit electricity every years,3pcs general 14w T5       fluorescent will expend 0.336 unit electricity,122.64 unit electricity every years,so LED panel light will save         17.52 unit electricity every year.



If the office install 10pcs LED panel light,10 offices,electric charge is $0.1/unit,LED panel lights will save $175.2,save light charge $1000.



One LED Panel Light ,Lighting 50000 Hour



LED PANEL LIGHT

EQT

14W T5 FLOURESCENT

Save

Lamp Cost

$20

3XUS$10=US$30

$460

50000H

16X3000H=48000H

Electricity

1800KWH

2100KWH

300KWH

Labor Cost

1 Time

3X16=48 Times

A Lot



























installation





1.Suspended to the ceiling:

   1) Mount the base on the back of the panel light

   2) Use the hanging wire,through the hole in the base

   3) Use the hanging wire,through the hole ing the other base

   4) Fixing the base and ceiling with screws



2.Surface Mounted

   1) Install three sheet metal tank

   2) Put the panel light in,make the panel light accordance with the metal tank

   3) Installation of fourth pieces of sheet metal tank



3.Embedded with clips(1)

   1) Remove the false ceiling

   2) Take out the ceiling flat panel light

   3) Through the connector link power

   4) Put the panel light in the ceiling,installation effects



4.Embedded with clips(2)

   1) Fix the clips on the panel light

   2) Put the light in the ceiling,use the clips to fix the light,and link power

   3) Installarion effects



Certifications



CE RoHS TUV- EMC & LVD/SAA/LM79/LM80/LCP

Our certification & Test Report (UL DLC CUL on process)







      ZJESL LED Panel Light on Official Test



           1. LED Panel Light Class Level: A+

(Reference-ErP6000hrs, report No. 15083382 002, Page 8 of 12)



2. Lumens Depreciation of LED Panel Light< 8% (International standard )

(Reference-ErP 6000hrs, report No. 15083382 002, Page 11 of 12)



3. Ambient Temperature: (15℃-40℃) -

(Reference-ErP6000hrs, report No. 15083382 002, Page 11 of 12)

& can be reached at 60℃(on process of testing)



 4. Driver information

 TUV EMC & LVD CE RoHS SAA LM79

 Ta=45℃, Tc=85



         5. Testing report by authoritative test organization

CE RoHS ErP LM79 - TUV

SAA C-tick LCP - CNAS (Testing L4595)



   6. LED Chip

Epistar Brand, SMD BY HONGLI

LM80/TM21 testing standard



Professional Optical Lab Equipment - inner testing for samples & bulb order QC testing standard

*Distributed photometer testing machine -IES files & lumen/lux

*Integrating sphere integrating sphere measurement- CCT PF data

*RK2672A Voltage Withstand Test Instrument - 3750V testing

*Oscilloscope -LED chip

*High temperature test machine - LED panel light & LED power supply high temperature testing







We also offer service on Dialux software for projects requirement, to simulate how many quantity based on drawing lux in one room, and what lumen for each light.





Packaging & Shipping



Shipping way



1.By express:DHL,UPS,EMS,TNT,Fedex.etc

2.By air:Please let us know your airport

3.By sea:Please let us know your port
