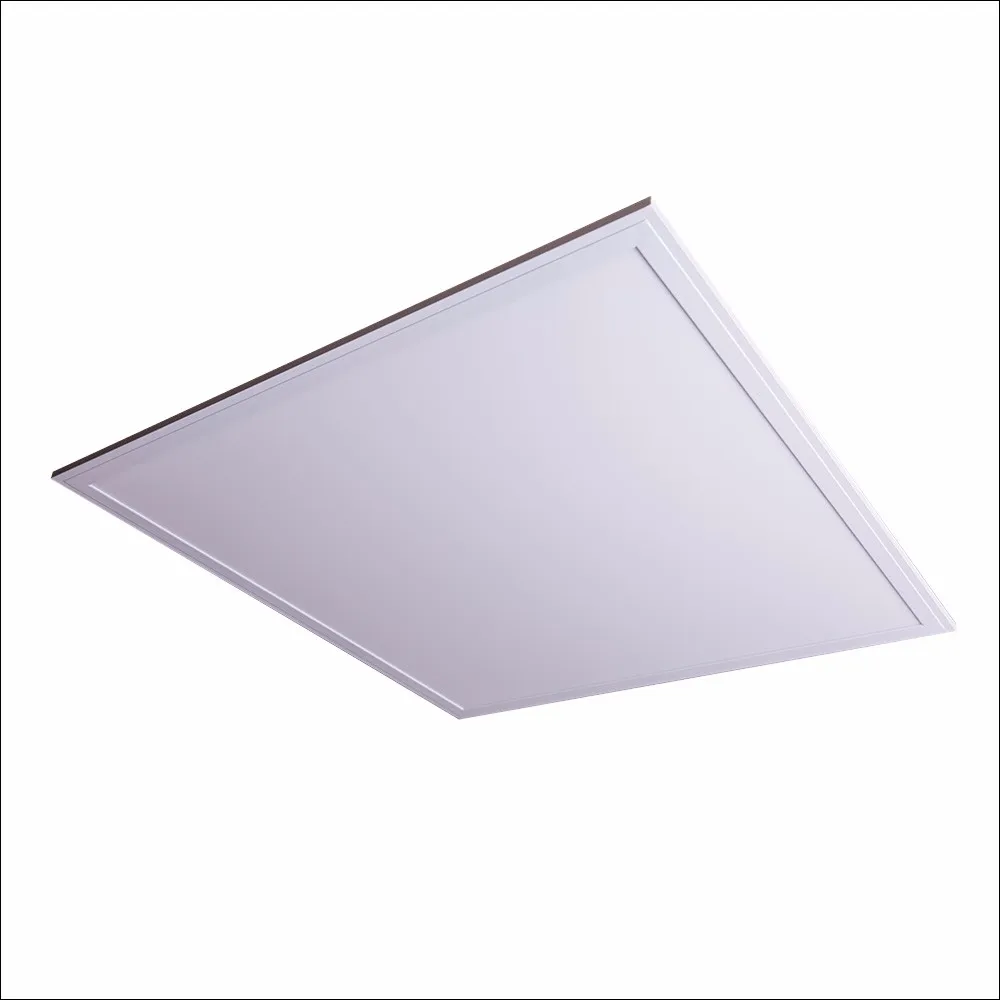

TUV CE 45w 595x595 Daylight sensor Led Panel Light
warm white/natural white/cool white
led panel light
SMD2835 led panel light
LED Light Source:
Lamp Luminous Efficiency(lm/w):
50000 Piece/Pieces per Month 2017 High quality High lumen LED Panel Lamp 295*1195mm 36W 3888L
Packaging & Delivery
Ningbo/ Shanghai port
shipping in 15-20 days after payment
Hi my friend, I'm Cathy; Thanks for your interest to our LED panel light;
If you need more details, please contact me soon !!!
* Adjust lights illumination based on ambient lighting; * More energy savings, visual comfort & intelligent light-control system; * Keep the panel lights original shape and same installation as before; * Driver obtain TUV EMC LVD SAA C-Tick Approval.
600X600 45w lux sensor Led Panel Light
Export Carton size
The material PC is very harder ,and the light transmittance is more worse. But our material PP the flexibility is more better,won’t bend,and the light transmittance is better.
We also can make UGR<19
No flicking driver can protect the eyes,and our driver have pass EMC,LVD,TUV,SAA,UL,LM79 certification.
Our led chip the largest lumen can reach 130lm/w, the best CRI we can more than 90(CRI>90),normal we use CRI>80.
Our lamp bead the cooling effect is better,higher brightness,the light efficiency can reach above 97%
LED Panel light save energy,take 36w 600*600 LED panel light for example,it lighting 8 hours every day.
1.The lumen of 1pc LED panel light amount to 3pcs general 14w T5 fluorescent.
1 LED panel light about $20/PC,1 general tube light about $10/PC,so can save US$10 per used cycle.
2.LED panel light life time is 50000 Hours,T5 fluorescent is 3000 Hours,it means 1pc LED panel light amount to 16pcs general 14w T5 fluorescent,it will save US$150,beside,labor cost is free.
3.1pc LED panel light will expend 0.288 unit electricity,105.12 unit electricity every years,3pcs general 14w T5 fluorescent will expend 0.336 unit electricity,122.64 unit electricity every years,so LED panel light will save 17.52 unit electricity every year.
If the office install 10pcs LED panel light,10 offices,electric charge is $0.1/unit,LED panel lights will save $175.2,save light charge $1000.
One LED Panel Light ,Lighting 50000 Hour
LED PANEL LIGHT
14W T5 FLOURESCENT
1.Suspended to the ceiling:
1) Mount the base on the back of the panel light
2) Use the hanging wire,through the hole in the base
3) Use the hanging wire,through the hole ing the other base
4) Fixing the base and ceiling with screws
1) Install three sheet metal tank
2) Put the panel light in,make the panel light accordance with the metal tank
3) Installation of fourth pieces of sheet metal tank
3.Embedded with clips(1)
1) Remove the false ceiling
2) Take out the ceiling flat panel light
3) Through the connector link power
4) Put the panel light in the ceiling,installation effects
4.Embedded with clips(2)
1) Fix the clips on the panel light
2) Put the light in the ceiling,use the clips to fix the light,and link power
3) Installarion effects
CE RoHS TUV- EMC & LVD/SAA/LM79/LM80/LCP
Our certification & Test Report (UL DLC CUL on process)
